Products / Ceramic heating elements / Chip heaters
Chip heaters
General description:

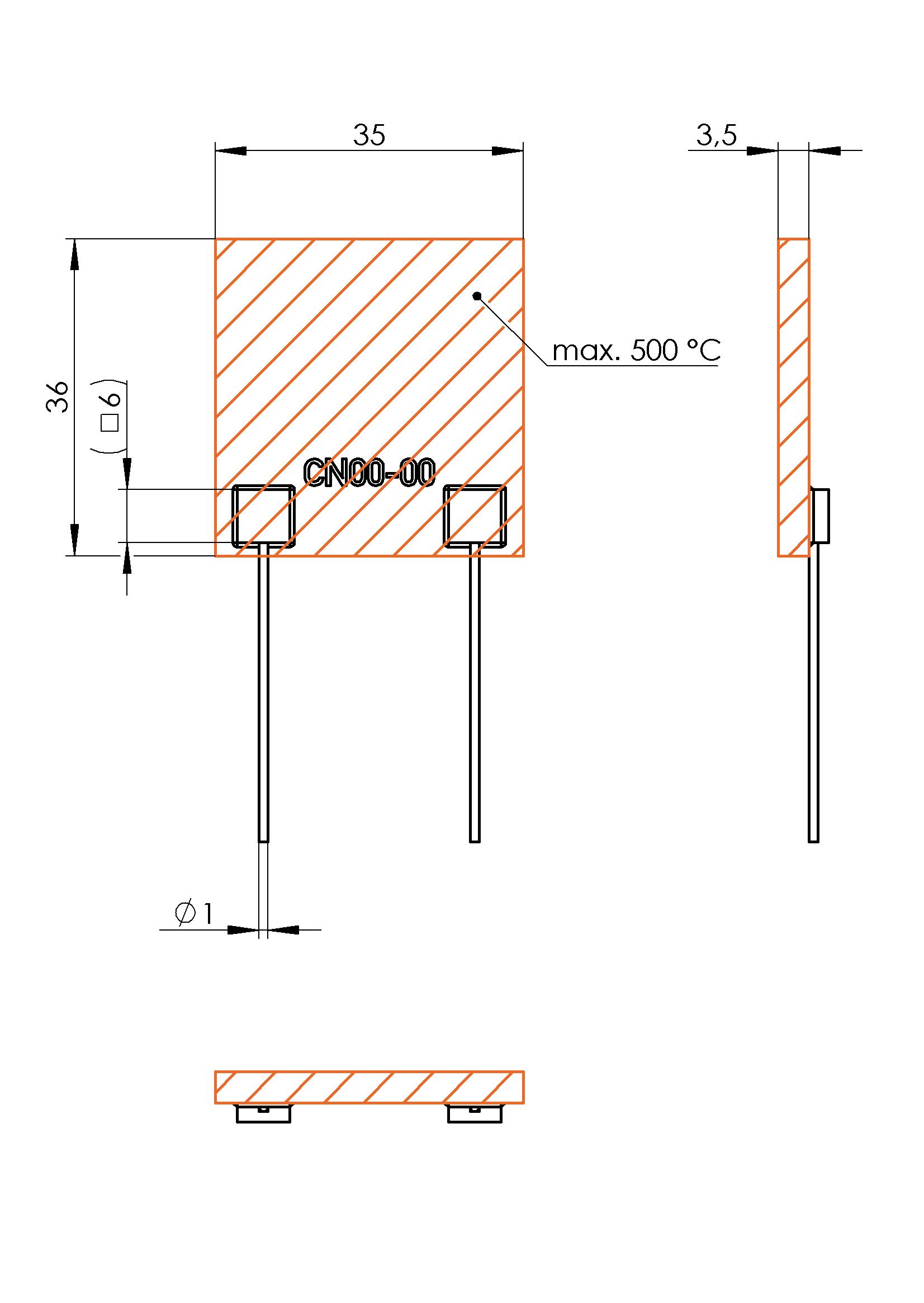

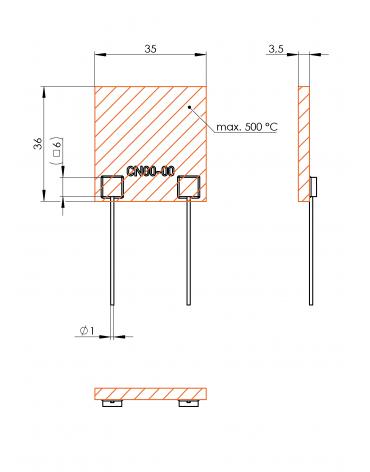

A rated power of more than 1 700 W with external dimensions of only 35 mm x 36 mm x 3.5 mm: The heating element of the CN type allows the highest heating rates, for example for flip-chip bonding applications.
Basic values:
| Parameter | Value |
|---|---|
| Dimensions | 36 x 35 x 3.5 mm |
| Heated area | 36 x 35 x 3.5 mm |
| Tmax | 500 °C |
Details:
- Standard
-
Description
* The actual power depends on resistance, temperature and voltage.
Parameter Value Article no. FLE 100 067 Resistance @ 20 °C 30 Ω ±25 % Nominal voltage 230 V Nominal power @ 20 °C 1 760 W*
