Hot plates
General description:
With outside dimensions of 210 mm x 210 mm, the heating element of the SJ type is suitable for quickly and evenly heating large areas up to 500 °C. The heating plates can also be arranged side by side like tiles, so that almost unlimited surface areas can be heated up - all with a very small thickness of only 6 mm. This makes the heating plate optimally suited, for example, to be used as a space heater in metal 3D printing systems, or to heat metal sheets over a large area. Of course, when using several heating elements, these can also be controlled separately – in this way, temperature profiles in the surface can be set precisely.
Basic values:
| Parameter | Value |
|---|---|

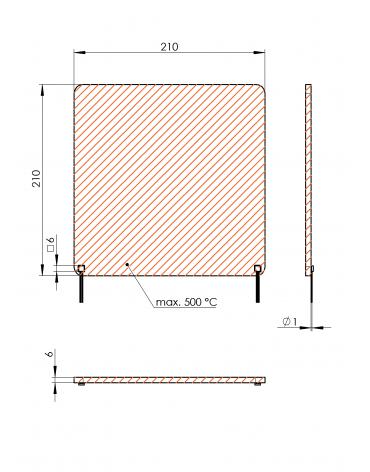

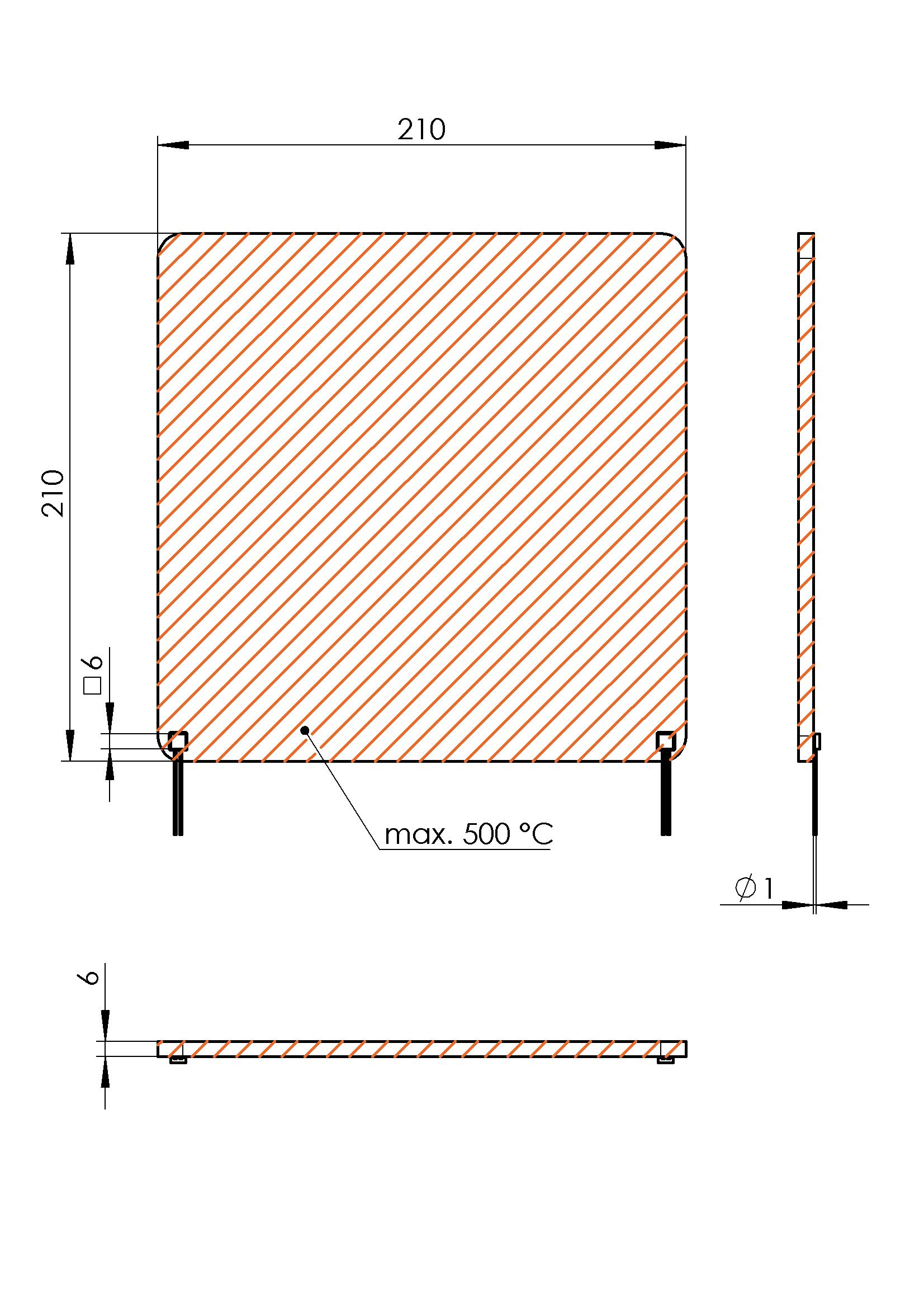

| Dimensions | 210 x 210 x 6 mm |
| Heated area | 210 x 210 x 6 mm |
| Tmax | 500 °C |
Details:
- Standard
-
Description
* The actual power depends on resistance, temperature and voltage.
Parameter Value Article no. FLE 100 950 Resistance @ 20 °C 42,32 Ω ±25 % Nominal voltage 230 V Nominal power @ 20 °C 1 250 W*
