Hot plates

Hot plates

General description:

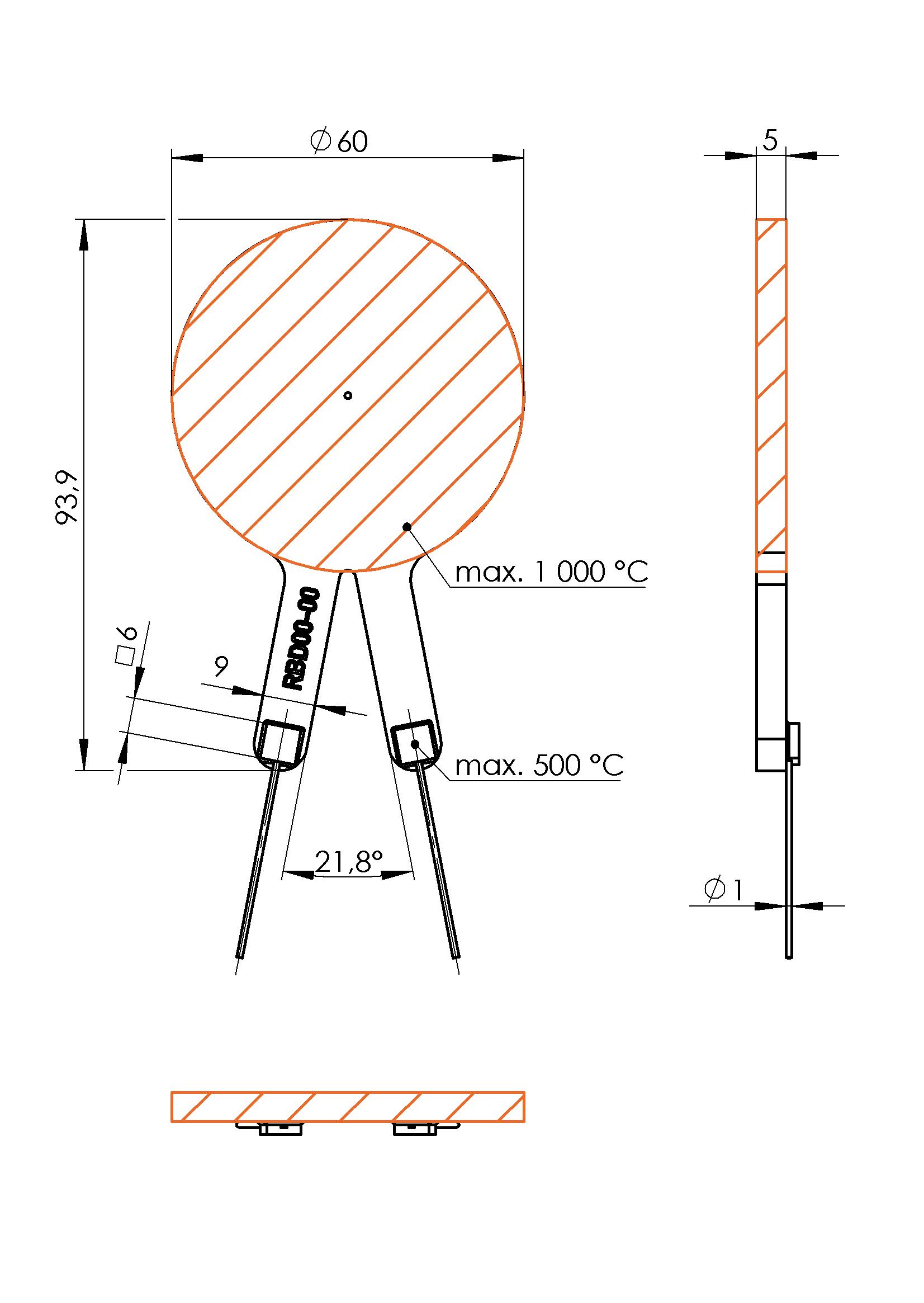

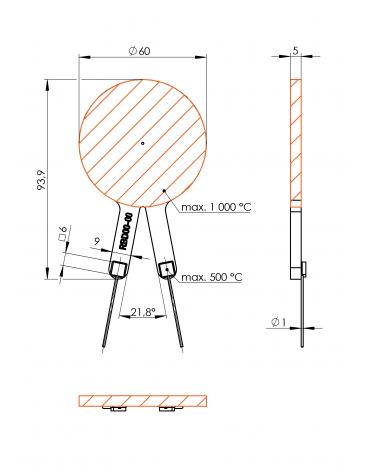

A heated surface of 60 mm diameter, which can be heated up to 1 000 °C: These are the most important characteristics of the heating element of the RBD type. Due to the separate "contact legs" guided far to the outside, it can be ensured that the brazed contacts are only operated at a maximum temperature of 500 °C, even when operating the heating element at maximum temperature.


Basic values:

Parameter Value
Dimensions Ø 60 x 93.9 x 5.0 mm
Heated area Ø 60 x 5.0 mm
Tmax 1 000 °C

Details:

Standard

Description

* The actual power depends on resistance, temperature and voltage.

Parameter Value
Article no. FLR 100 162
Resistance @ 20 °C 30 Ω ±25 %
Nominal voltage 230 V
Nominal power @ 20 °C 1 760 W*
