Heating cutters
General description:
The ceramic used for the heating elements (silicon nitride) is very durable and resistant to wear. Hence, it is obvious to produce required tool geometries directly from the ceramic material: The heating knives have a cutting edge from silicon nitride with which, for example, foils can be cut and welded together at the same time.
Basic values:
| Parameter | Value |
|---|---|

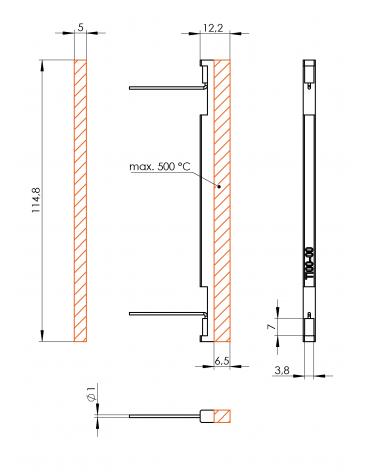

| Dimensions | 114.8 x 12.2 x 5.0 mm |
| Heated area | 114.8 x 6.5 x 5.0 mm |
| Tmax | 500 °C |
Details:
- Standard
-
Description
* The actual power depends on resistance, temperature and voltage.
Parameter Value Article no. FLE 100 276 Resistance @ 20 °C 115 Ω ±25 % Nominal voltage 230 V Nominal power @ 20 °C 460 W*
