Radiant heaters
General description:
Heating elements made of silicon nitride are very suitable as radiation heaters. The almost black silicon nitride used for the heating elements is a long-wave infrared radiator with a maximum radiation emission (ε > 0.8) between 8 and 11 µm at 1 000 °C. Thus, a wide variety of materials can be heated effectively by radiation: Sheet metals to be selectively heated or held at temperature for subsequent re-forming processes, as well as plastics where the weld edges are to be melted for a subsequent sealing process. In addition, plastics can be selectively "glued", or sharp edges can be rounded or thermally deburred by radiant heat. Radiation heaters with the dimensions 210 mm x 14.5 mm x 4.4 mm are available in a large number of different power ratings. However, they can also be equipped with sensor boreholes for thermocouples, in order to be able to precisely control the temperature of the heating element. The robust design of these heating elements, in conjunction with the good oxidation resistance of the silicon-nitride ceramics, ensures a long service life - both during continuous operation and during cyclic demand.

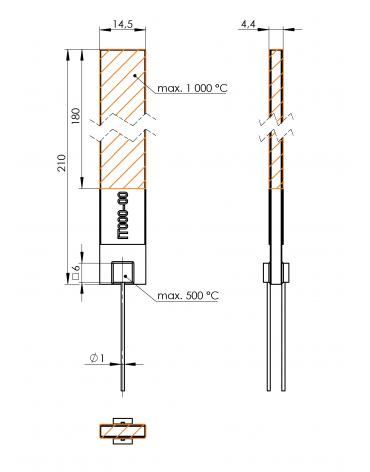

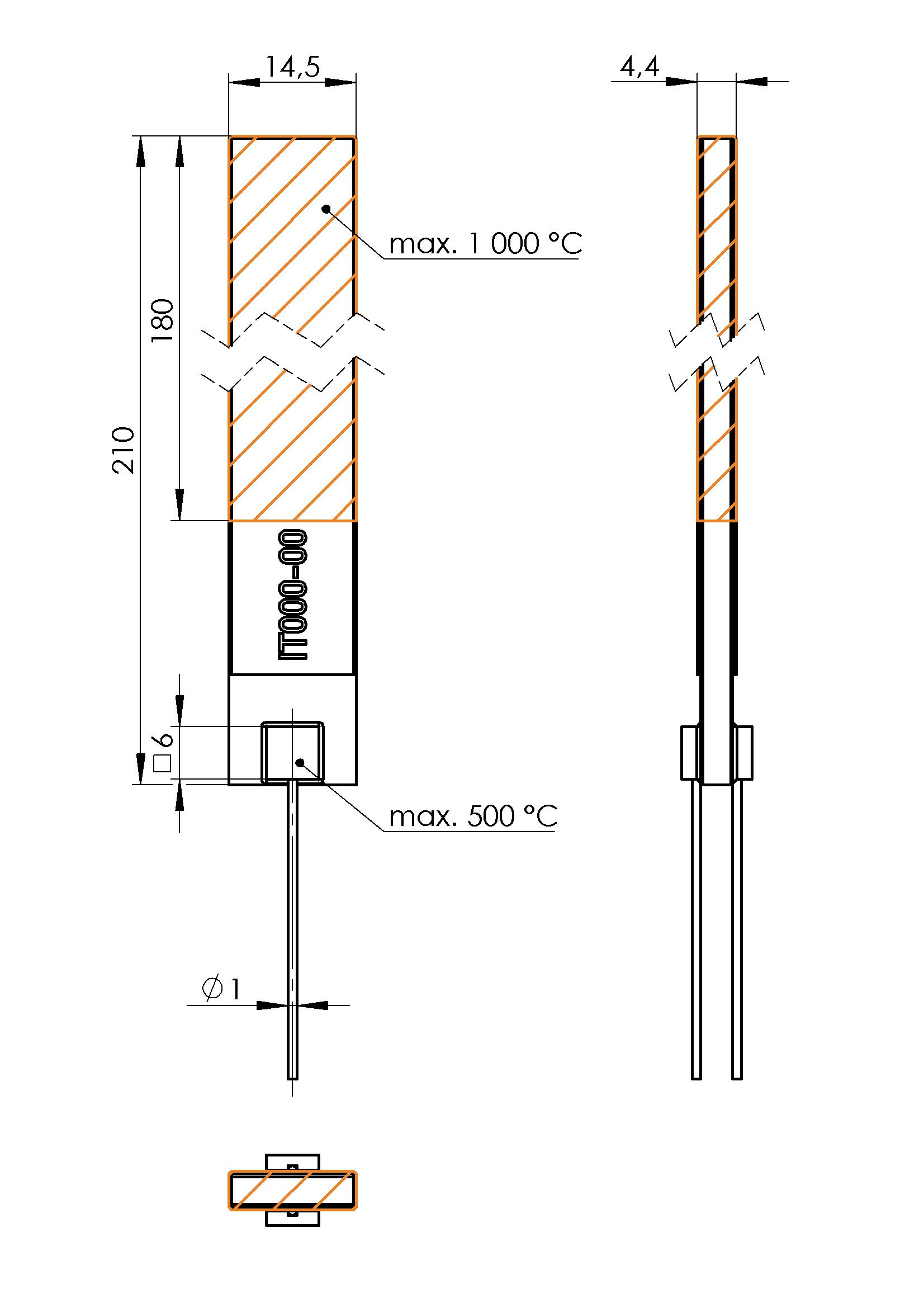

Basic values:
| Parameter | Value |
|---|---|
| Dimensions | 210 x 14.5 x 4.4 mm |
| Heated area | 180 x 14.5 x 4.4 mm |
| Tmax | 1 000 °C |
Details:
- Standard
-
Description
* The actual power depends on resistance, temperature and voltage.
Parameter Value Article no. GLZ 100 259 GLZ 100 261 GLZ 100 260 Resistance @ 20 °C 132,25 Ω ±15 % 105,80 Ω ±15 % 83,97 Ω ±15 % Nominal voltage 230 V 230 V 230 V Nominal power @ 20 °C 400 W* 500 W* 630 W* Continuance ... ... ... Article no. GLZ 100 258 GLZ 100 077 GLZ 100 257 Resistance @ 20 °C 66,13 Ω ±15 % 52,90 Ω ±15 % 42,32 Ω ±15 % Nominal voltage 230 V 230 V 230 V Nominal power @ 20 °C 800 W* 1 000 W* 1 250 W* - with sensor hole Ø1.0 mm
-
Description
The heating element has a blind hole, into which a temperature sensor with Ø1.0 mm, for example a
mantle thermocouple, can be inserted.
* The actual power depends on resistance, temperature and voltage.Parameter Value Article no. GLZ 100 165 GLZ 100 266 GLZ 100 265 Resistance @ 20 °C 132,25 Ω ±15 % 105,80 Ω ±15 % 83,97 Ω ±15 % Nominal voltage 230 V 230 V 230 V Nominal power @ 20 °C 400 W* 500 W* 630 W* Continuance ... ... ... Article no. GLZ 100 262 GLZ 100 263 GLZ 100 264 Resistance @ 20 °C 66,13 Ω ±15 % 52,90 Ω ±15 % 42,32 Ω ±15 % Nominal voltage 230 V 230 V 230 V Nominal power @ 20 °C 800 W* 1 000 W* 1 250 W* - with sensor hole Ø1.5 mm
-
Description
The heating element has a blind hole, into which a temperature sensor with Ø1.5 mm, for example a
mantle thermocouple, can be inserted.
* The actual power depends on resistance, temperature and voltage.Parameter Value Article no. GLZ 100 267 GLZ 100 272 GLZ 100 271 Resistance @ 20 °C 132,25 Ω ±15 % 105,80 Ω ±15 % 83,97 Ω ±15 % Nominal voltage 230 V 230 V 230 V Nominal power @ 20 °C 400 W* 500 W* 630 W* Continuance ... ... ... Article no. GLZ 100 268 GLZ 100 269 GLZ 100 270 Resistance @ 20 °C 66,13 Ω ±15 % 52,90 Ω ±15 % 42,32 Ω ±15 % Nominal voltage 230 V 230 V 230 V Nominal power @ 20 °C 800 W* 1 000 W* 1 250 W*
