Products / Ceramic heating elements / Glow igniters

Glow igniters
Glow igniters

Glow igniters

General description:

The glow igniters of the type IPB make it possible to achieve (ignition) temperatures of up to 1 000 °C with a very compactly built heating element with a rated. The two available versions, differ in the orientation of the electrical contacts. The small glow igniters can be used not only as igniters - for example of wood pellets - but can also be used for contact heating of various substrates as well as for the ignition of process gases.


Basic values:

Parameter Value
Dimensions 60 x 8.0 x 2.5 mm
Heated area 30 x 8.0 x 2.5 mm
Tmax 1 000 °C

Details:

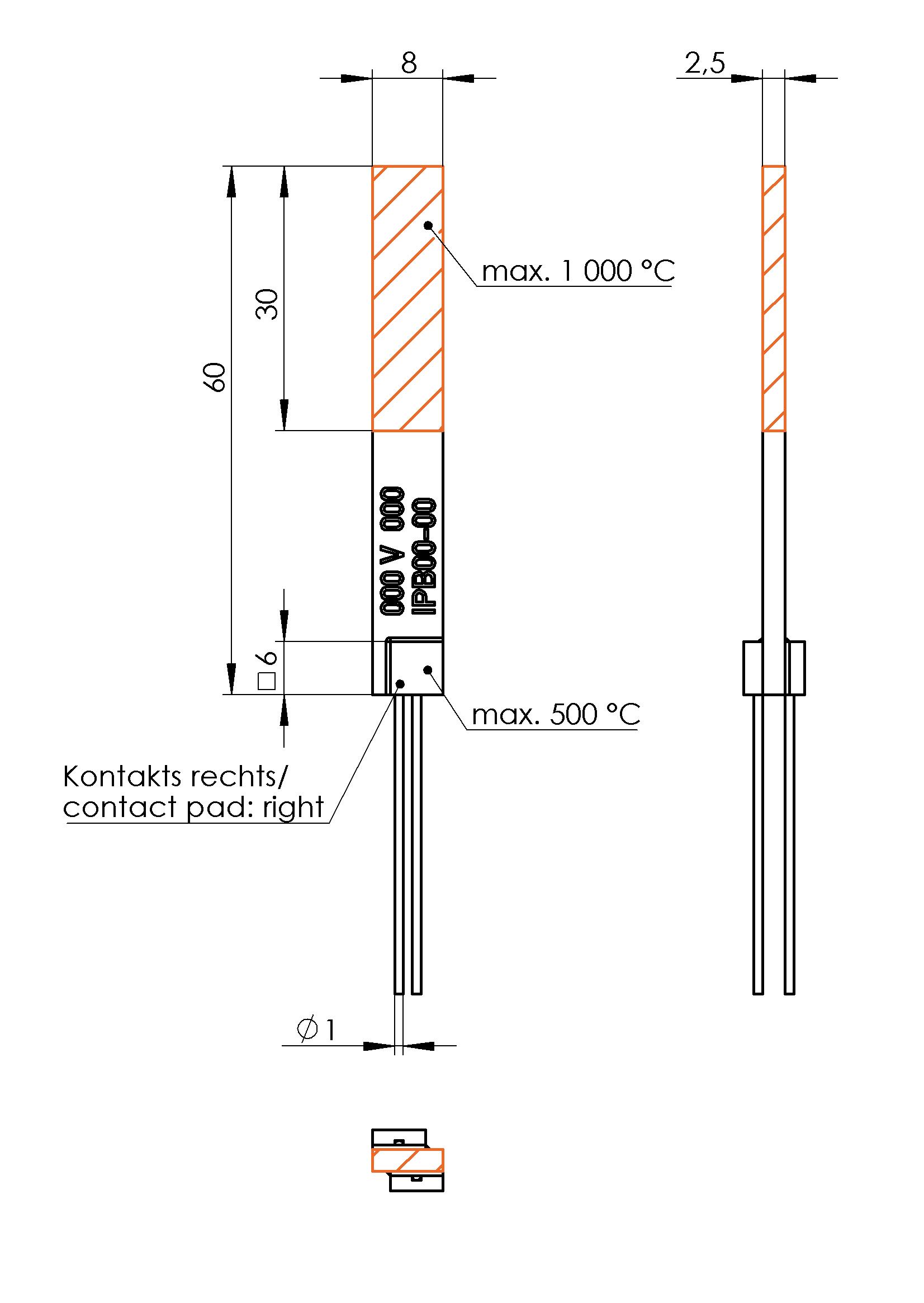

Standard, right

Description

- position of the contact pad: right
- surface as fired

Parameter Value
Article no. GLZ 100 180
Nominal power (hot) 130 W ±30 W
Nominal voltage 110 V

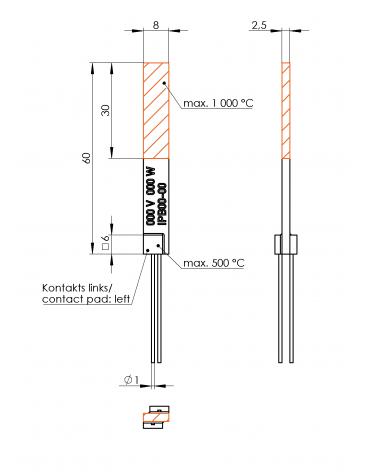

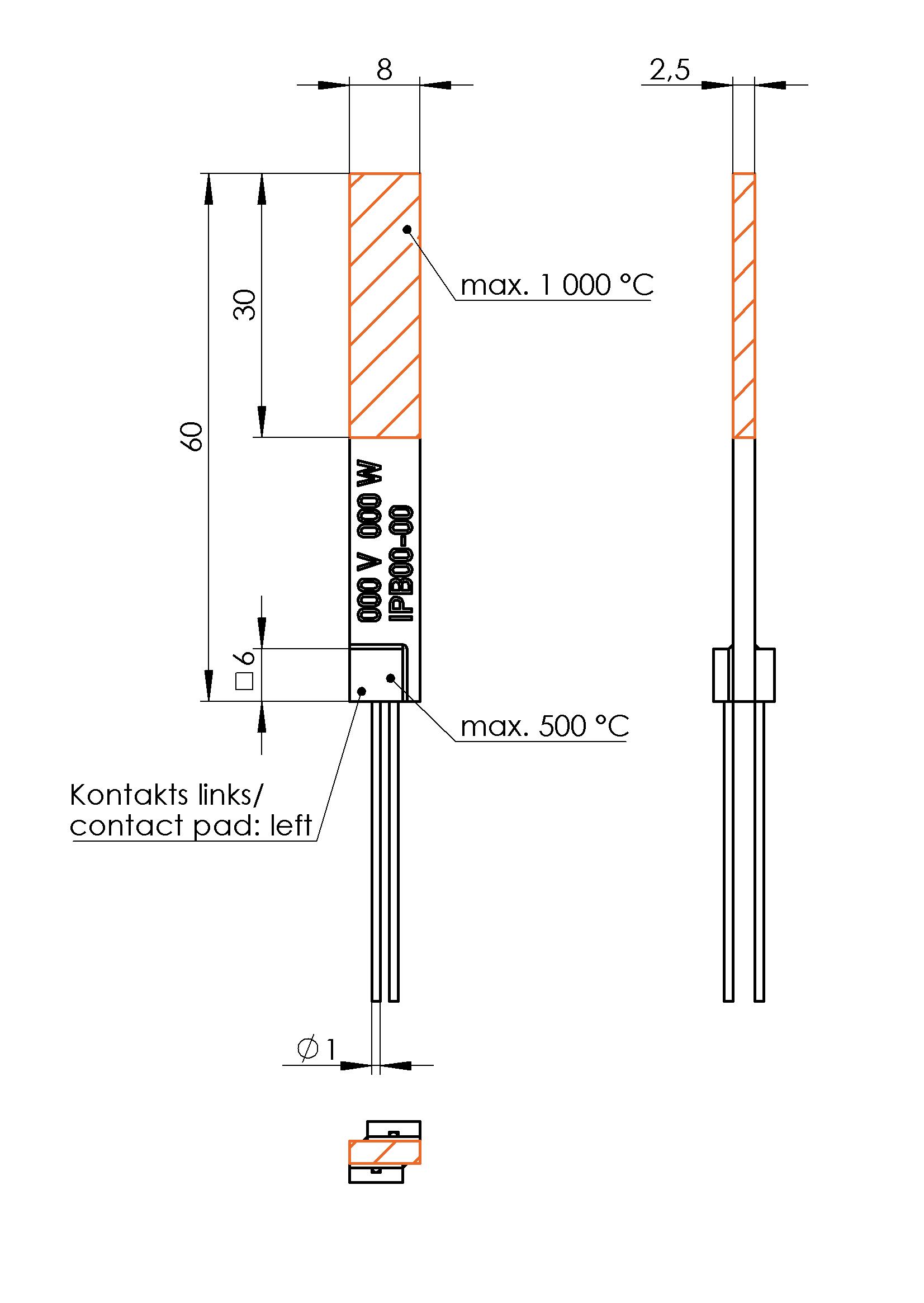

Standard, left

Description

- position of the contact pad: left
- surface as fired

Parameter Value
Article no. GLZ 100 113
Nominal power (hot) 130 W ±30 W
Nominal voltage 110 V
