Glow igniters
Glow igniters

Glow igniters

General description:

The glow igniters of the IP type (IPR/IPL) make it possible to achieve (ignition) temperatures of up to 1 000 °C with a very compactly built heating element with a rated voltage of 24 V. The two available versions, IPR and IPL, differ in the orientation of the electrical contacts. The small glow igniters can be used not only as igniters - for example of wood pellets - but can also be used for contact heating of various substrates as well as for the ignition of process gases.


Basic values:

Parameter Value
Dimensions 60 x 8.0 x 2.5 mm
Heated area 10 x 8.0 x 2.5 mm
Tmax 1 000 °C

Details:

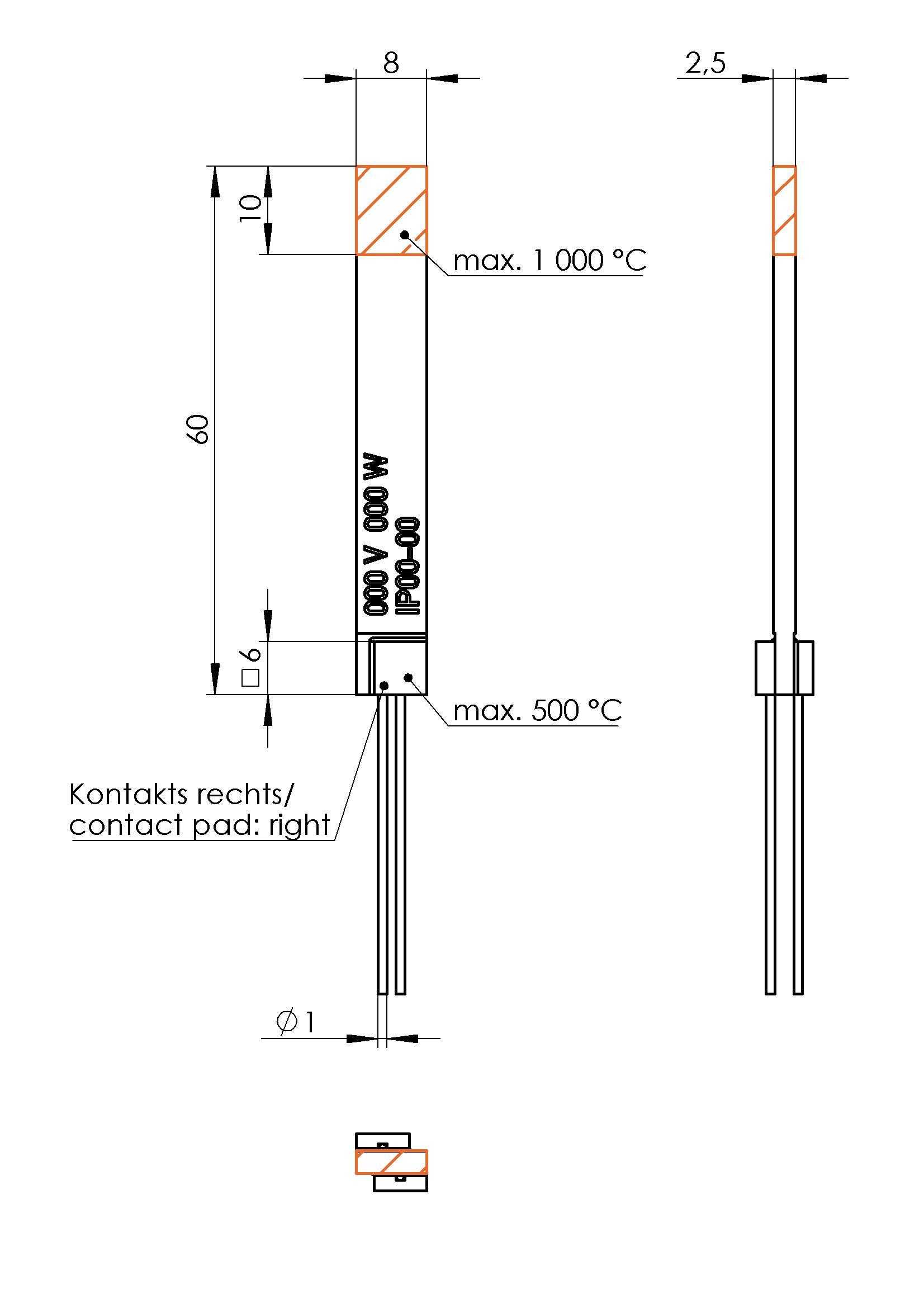

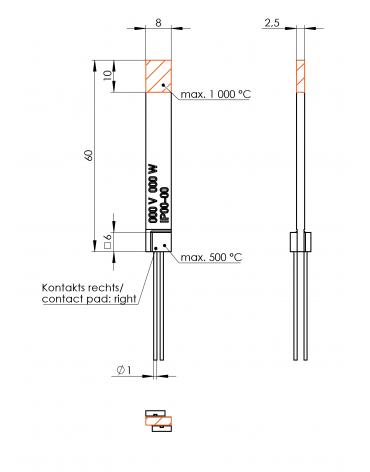

Standard, right

Description

- position of the contact pad: right
- surface as fired
* The actual power depends on resistance, temperature and voltage.

Parameter Value
Article no. GLZ 100 060
Resistance @ 20 °C 4.8 Ω ±50 %
Nominal voltage 24 V
Nominal power @ 20 °C 120 W*

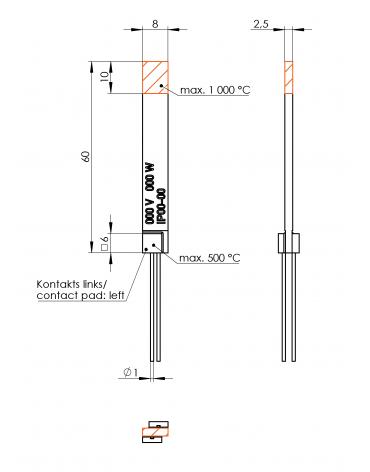

Standard, left

Description

- position of the contact pad: left
- surface as fired
* The actual power depends on resistance, temperature and voltage.

Parameter Value
Article no. GLZ 100 153
Resistance @ 20 °C 4.8 Ω ±50 %
Nominal voltage 24 V
Nominal power @ 20 °C 120 W*
