Flat heating elements
General description:
The maximum temperature of 1 000 °C and the favourable dimensions of the heated zone of 50 mm x 50 mm allow - with the type HV - use of the heating element for many different application scenarios. Thus, for example, by using several heating elements of the type HV with suitably arranged "cold zone", a cuboid or cube-shaped body can be heated up to 1 000 °C.
Basic values:
| Parameter | Value |
|---|---|

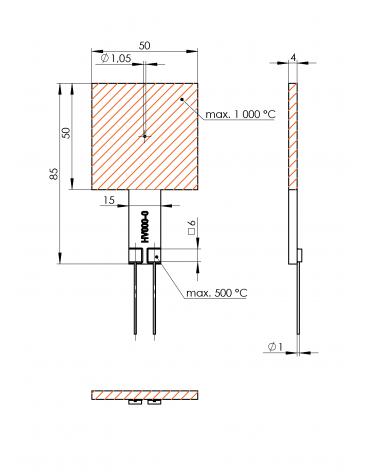

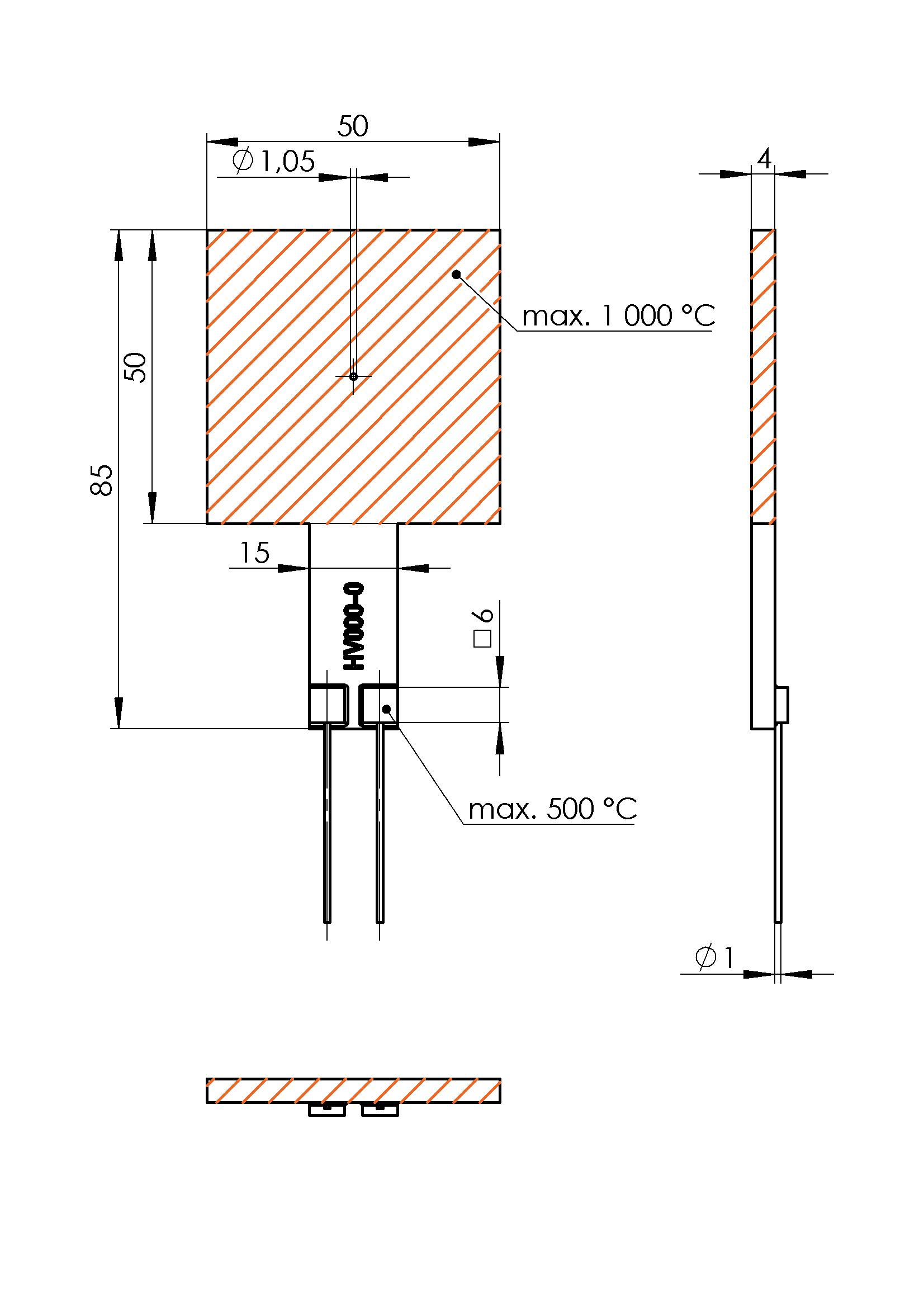

| Dimensions | 85 x 50(15) x 4.0 mm |
| Heated area | 50 x 50 x 4.0 mm |
| Tmax | 1 000 °C |
Details:
- with sensor hole Ø1.0 mm
-
Description
The heating element has a blind hole, into which a temperature sensor with Ø1,0 mm, for example a mantle thermocouple, can be inserted.
* The actual power depends on resistance, temperature and voltage.Parameter Value Article no. FLE 100 389 Resistance @ 20 °C 52 Ω ±25 % Nominal voltage 230 V Nominal power @ 20 °C 1 017,3 W*
