Flat heating elements

Flat heating elements

General description:

With a maximum temperature of 1 000 °C and a heated zone of 35 mm x 25 mm, the type RDB is a very universally applicable heating element: It can be used both as a contact heating element and for radiator-type heating. In addition, this heating element type is also available in many different configurations for different operating voltages and outputs as well as with and without drilling holes for an optional temperature sensor. The type RDB finds application, for example, as a heating element for sample heating in R&D applications, as a radiator heater for welding of plastics and as a high-temperature heater for coating applications.


Basic values:

Parameter Value

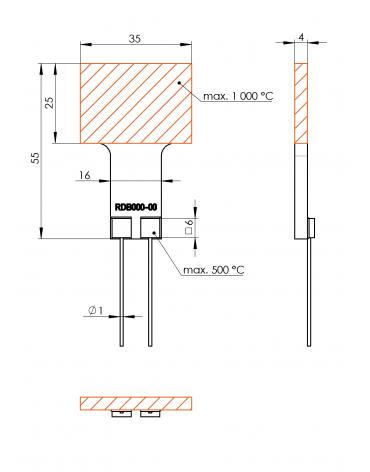

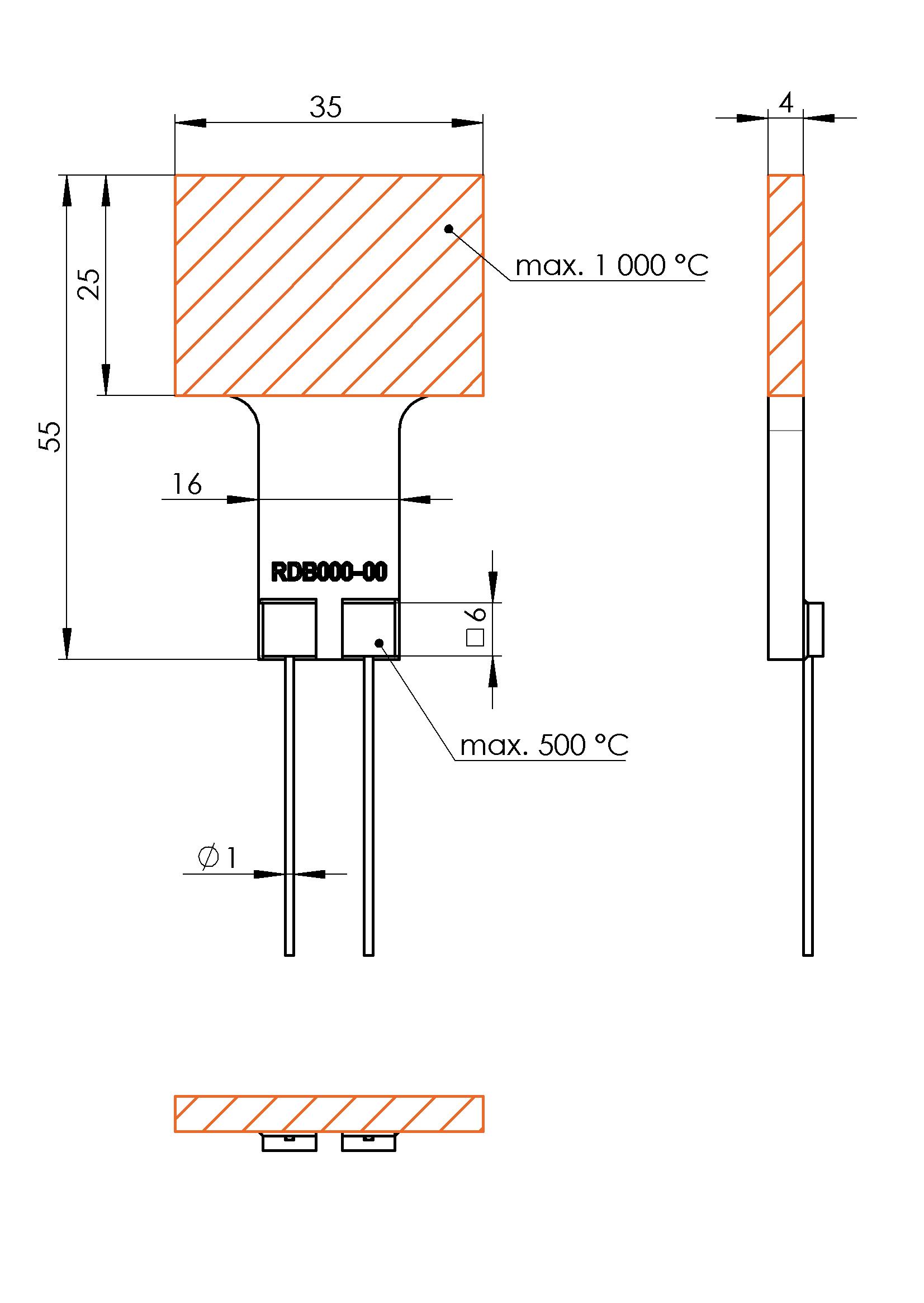

Dimensions 55 x 35(16) x 4.0 mm
Heated area 25 x 35 x 4.0 mm
Tmax 1 000 °C

Details:

Standard

Description

* The actual power depends on resistance, temperature and voltage.

Parameter Value
Article no. FLE 100 638 FLE 100 639
Resistance @ 20 °C 58.7 Ω ±25 % 16 Ω ±25 %
Nominal voltage 230 V 110 V
Nominal power @ 20 °C 900 W* 756 W*
with sensor hole Ø1.0 mm

Description

The heating element has a blind hole, into which a temperature sensor with Ø1,0 mm, for example a mantle thermocouple, can be inserted.
* The actual power depends on resistance, temperature and voltage.

Parameter Value
Article no. FLE 100 640 FLE 100 679
Resistance @ 20 °C 58,7 Ω ±25 % 16 Ω ±25 %
Nominal voltage 230 V 110 V
Nominal power @ 20 °C 900 W* 756 W*
with sensor hole Ø1.5 mm

Description

The heating element has a blind hole, into which a temperature sensor with Ø1,5 mm, for example a mantle thermocouple, can be inserted.
* The actual power depends on resistance, temperature and voltage.

Parameter Value
Article no. FLE 100 692 FLE 100 693
Resistance @ 20 °C 58,7 Ω ±25 % 16 Ω ±25 %
Nominal voltage 230 V 110 V
Nominal power @ 20 °C 900 W* 756 W*
